REF 14.05
  • Auxiliary top plate

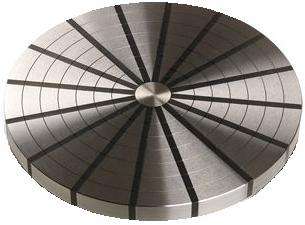

Auxiliary Top Plate type PP/MR for Magnetic Circular Chuck type ERCA

    • Heavy duty construction

. To use with circular magnetic chucks type ERCA/ERCN
. Welded construction with epoxy resin
.
 Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting radial pole layout) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.

  • Use :
    • Grinding
    • Turning
Options :
- Other sizes available on request
- Other pole pitch execution
- Special machinings
- Fitting systems
Auxiliary top

Qty Product Weight in kg A B
14.05.150.ERCA1,015020
14.05.180.ERCA2,018020
14.05.200.ERCA3,020020
14.05.250.ERCA4,025020
14.05.300.ERCA5,030020
14.05.350.ERCA6,035020
14.05.400.ERCA7,040020
14.05.450.ERCA8,045020
14.05.500.ERCA10,050020
14.05.130.ERCN2,013020
14.05.150.ERCN3,015020
14.05.200.ERCN4,020020
14.05.250.ERCN5,025020
14.05.300.ERCN7,030020
14.05.350.ERCN10,035020
14.05.400.ERCN15,040020
14.05.500.ERCN10,050020
14.05.600.ERCN25,060020
