REF 13.22
  • 13.22-CIRCULAR MAGNETIC BLOCK TYPE MMC
  • CIRCULAR MAGNETIC BLOCK
13.22-CIRCULAR MAGNETIC BLOCK TYPE MMCCIRCULAR MAGNETIC BLOCK

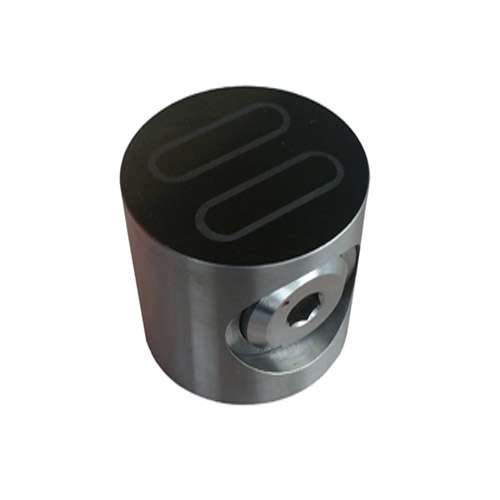

Circular Magnetic Block type MMC

    • Heavy duty construction
    • Waterproof construction
    • Long service life

. 1 active face
. With ON/OFF mechanism
. With centering recess and threaded holes at the rear
  • Use :
    • Grinding
    • EDM
    • metrology
  • Pole pitch :
    • 9,5/10 mm
    • 1,5/2 mm of brass
    • 8 mm of steel
  • Admissible wear of top plate :
    • 2 mm
  • Magnetic field height :
    • 6 mm
13-22-800px-5034

Qty Product Weight in kg A B C D E F
13.22.500,7505025354xM585N
13.22.802,2806550604xM6500N
indication_tableau_dessus
