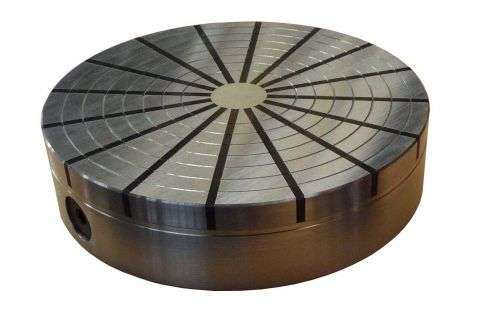

Circular Permanent Magnetic Chuck Type ERCN

    • High holding power
    • Heavy duty construction
    • Waterproof construction
    • Recommended for hard turning

. Uniform and very powerful magnetic field
. Radial pole pitch with steel + epoxy resin
. with Neodymuim-Magnets

Included with purchase:
- 1 Actuating Key



  • Use :
    • Grinding
    • Turning
    • Hard turning
  • Nominal force :
    • 140 N/cm²
  • Admissible wear of top plate :
    • 3 mm
Options :
T-slots in each pole
Through hole in the middle
Raising pole shoes
Auxiliary top plate

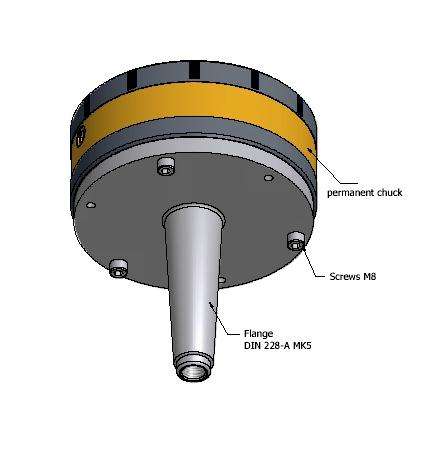

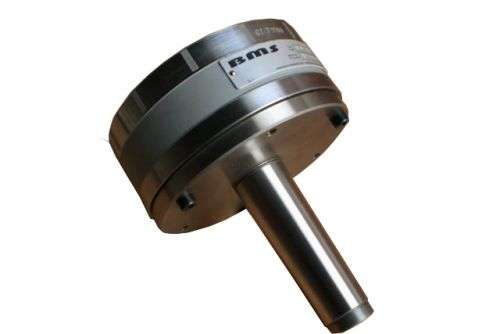

Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029

mandrin magnétique

Qty Product Weight in kg A B C D E F G H I J
11.01.130N513057-50H7-1004x(M6x12)51510
11.01.150N7,315057-50H7801204x(M6x12)51510
11.01.200N1320057-60H71101804x(M6x12)52012
11.01.250N2025070-80H71402204x(M6x12)53016
11.01.300N3030073-150H71802604x(M8x16)63816
11.01.350N4935073-170H72203004x(M8x16)64020
11.01.400N7540074-200H72603404x(M8x16)84020
