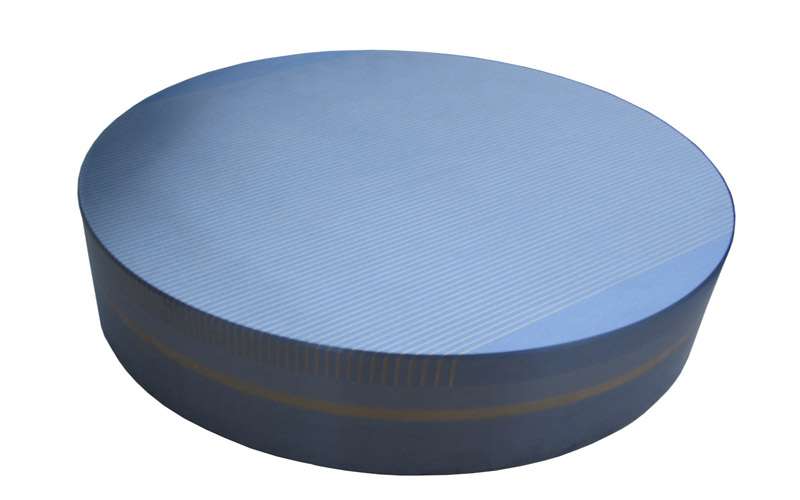

Circular Permanent Magnetic Chuck type MPF2

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. Circular magnetic chuck with NEODYMIUM magnets
. Low magnetic field
. Fine pole pitch
. Suitable for precision machings and thin workpieces
Included with purchase:
- 1 Actuating Key

  • Use :
    • Grinding
    • EDM
    • metrology
    • Laser welding
  • Nominal force :
    • 95 N/cm²
  • Pole pitch :
    • 2 mm
    • 0.5 mm of brass
    • 1.5 mm of steel
  • Admissible wear of top plate :
    • 5 mm
  • Magnetic field height :
    • 4 mm
Options :
Machining possible at the rear of the chuck
Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029

Qty Product Weight in kg A B C D E F
To request a quote
  • Enter amounts in the table above
  • Fill in the contact form below
