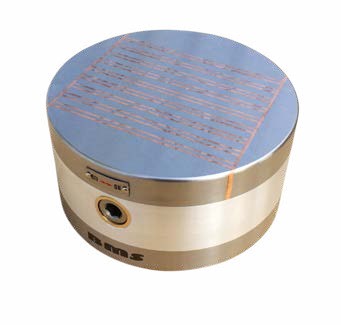

Circular Permanent Magnetic Chuck type MPR

    • High holding power
    • Force: 180 N/cm2
    • Recommended for hard turning

. Magnetic system with high holding force
. For allied steel and hardened steel workpieces
. Adjustable holding force
Included with purchase:
- 1 Actuating Key

  • Use :
    • Grinding
    • Turning
  • Nominal force :
    • 180 N/cm²
Options :
Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029
sch-11-07-36709

Qty Product Weight in kg A B C D E F G H I
11.07.130R6,5130757810011244xM67810
11.07.160R9,816010010012514044xM88110
11.07.200R15,02007512816018044xM88110
indication_tableau_dessus
