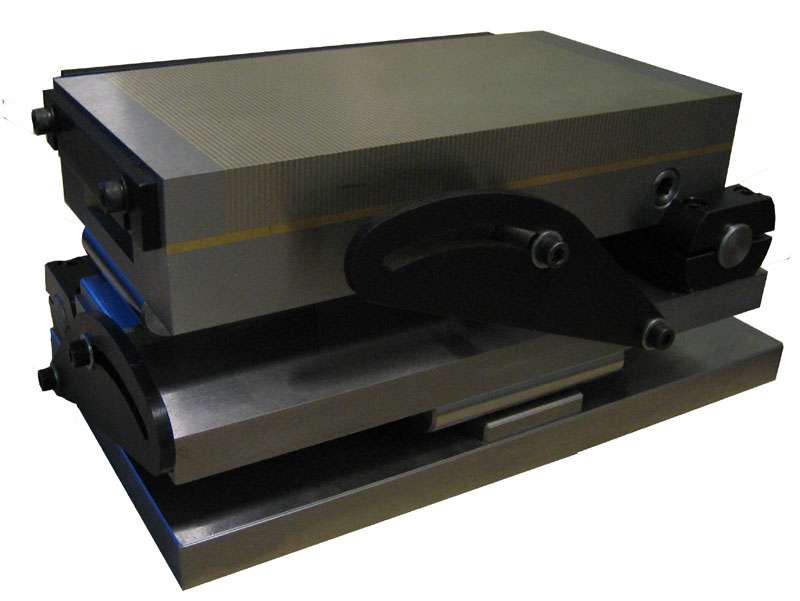

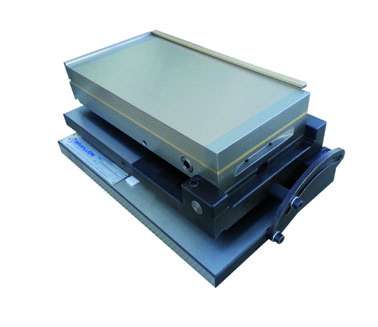

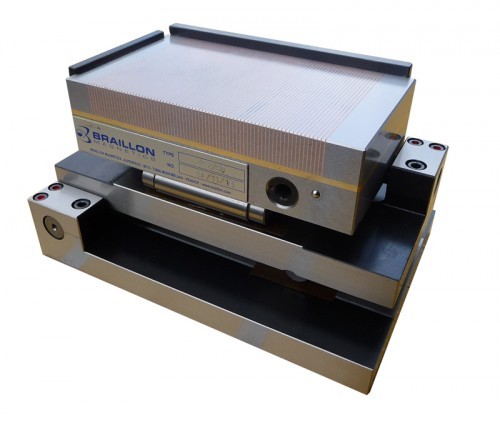

Compound Sine Table type PF2/SD

    • Heavy duty construction
    • Low height

. With standard permanent magnetic chuck type PF2
. Steel base body hardened to 60 HRC
. Precision-ground surface for highest accuracy
. Swiveling on long and short axis: respectively from 0° to 45° and from 0° to 30°
Included with purchase:
- 1 Actuating key
- End stops
- Table of sines

  • Use :
    • Grinding
    • EDM
    • metrology
  • Angular accuracy :
    • ± 5'' sec
  • Parallelism :
    • ± 0.003/100 mm
  • Nominal force :
    • 100 N/cm²
  • Pole pitch :
    • 2 mm
    • 0.5 mm of brass
    • 1.5 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 4 mm
Options :
- With other magnetic chucks on request
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli

12-02-800px-5026

Qty Product Weight in kg A B C D E F G
12.02.17510013,5175100123,710075225160
12.02.25012523,4250125123,7100100300185
12.02.30015033,1300150123,7200100350205
12.02.35015051,0350150130300125400205
indication_tableau_dessus
