REF 91.09

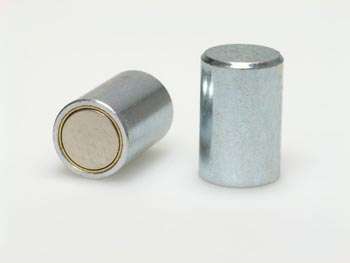

Cylindrical magnet h6 machinable type VND 09
-
- Neodynium magnet
-
- High holding power
- Heavy duty construction
- Long service life
- Effective
-
- Neodynium magnet
-
- High holding power
- Heavy duty construction
- Long service life
- Effective
-
Use :
- Mounting
- Clamping
- Assembly
-
Max. temperature of use :
- 80 °C

Qty | Product | Weight in kg | A | B | C | D |
---|---|---|---|---|---|---|
91.09-4 | 0.001 | 4 | 10 | 7 | 2.5 N | |
91.09-5 | 0.0015 | 8 | 10 | 6 | 4.5 N | |
91.09-6 | 0.002 | 6 | 10 | 5 | 6 N | |
91.09-8 | 0.005 | 8 | 12 | 7 | 12 N | |
91.09-10 | 0.01 | 10 | 16 | 11 | 24 N | |
91.09-13 | 0.018 | 13 | 18 | 13 | 60 N | |
91.09-16 | 0.031 | 16 | 20 | 15 | 90 N | |
91.09-20 | 0.061 | 20 | 25 | 18 | 135 N | |
91.09-25 | 0.114 | 25 | 30 | 22 | 190 N | |
91.09-32 | 0.217 | 32 | 35 | 27 | 340 N |
