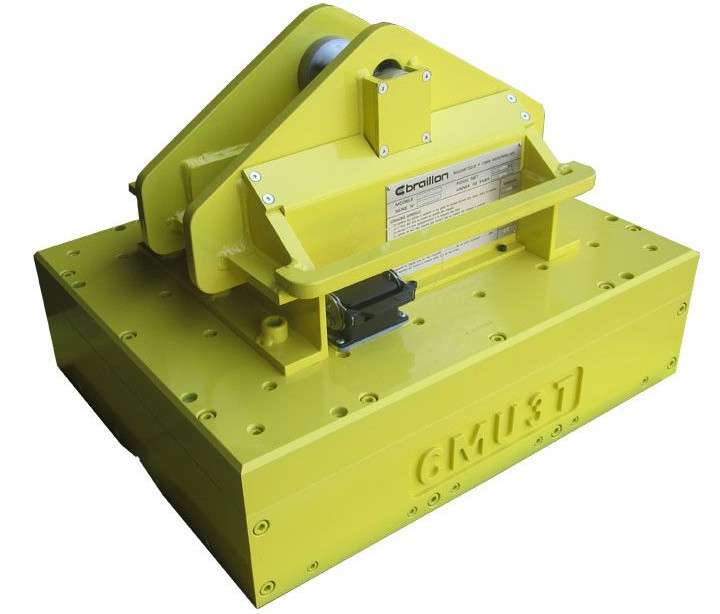

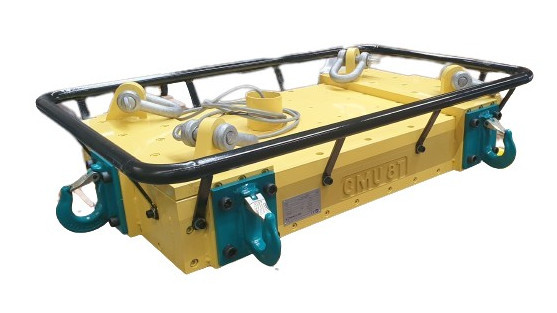

Electro-permanent Lifting Magnet type EPN

    • High holding power
    • Twin magnetic system
    • Long service life
    • Safe
    • Safety factor of more than 3:1

. For lifting of blocks or plates
. Wth Vee for round material lifting
. With safety sensor to prevent unwanted demagnetization
. Controlled through integrated buttons, protected, very sturdy construcdtion
Included with purchase:
- Built-in control unit
- Connector with 6 meter long cable
  • Use :
    • Lifting
    • Handling
  • Max. temperature of use :
    • 80 °C
  • Voltage :
    • 400 VAC
  • Duty cycle :
    • 100 %

Qty Product Weight in kg A B C D
20.18.30003005504503003000 daN
20.18.50004807804503005000 daN
20.18.80006509505307008000 daN
