REF 10.20

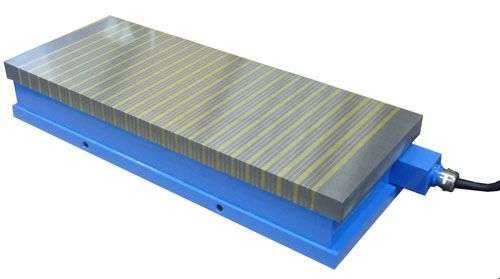

  • Electro-permanent-magnetic chuck Typ BLU

Electro-Permanent magnetic chuck type BLU

    • Heavy duty & compact construction
    • Attractive prices !

- Uniform magnetic field
- Parallel pole pitch throughout the whole width of the chuck
- Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.01.BUR and 50.10.T10
Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen)
- Long and short side end stops
- Clamps
  • Use :
    • Grinding
    • EDM
  • Nominal force :
    • 115 N/cm²
  • Pole pitch :
    • 19 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes
10-25-35683

Qty Product Weight in kg A B C
10.20.3351502433515081
10.20.4501503145015081
10.20.5002004650020081
10.20.6002005660020081
10.20.60040012660040091
10.20.80040018380040093
10.20.10004002601000400106
