REF 10.25

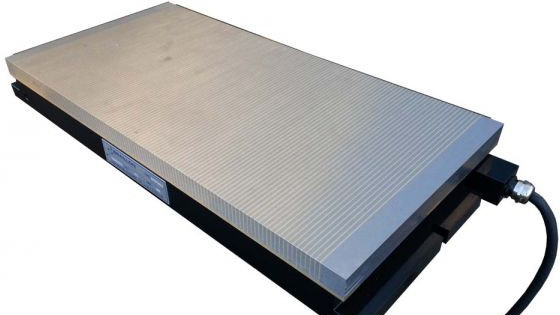

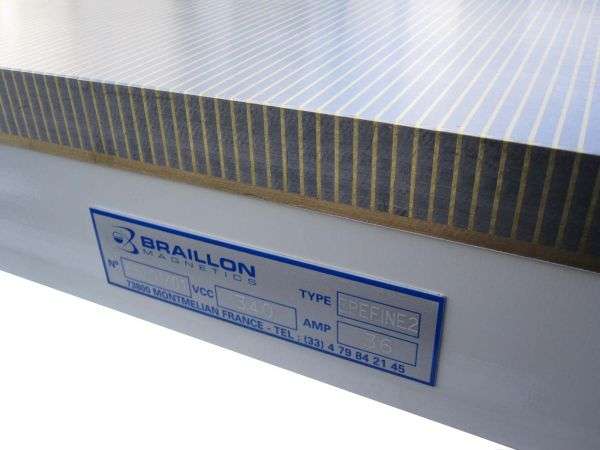

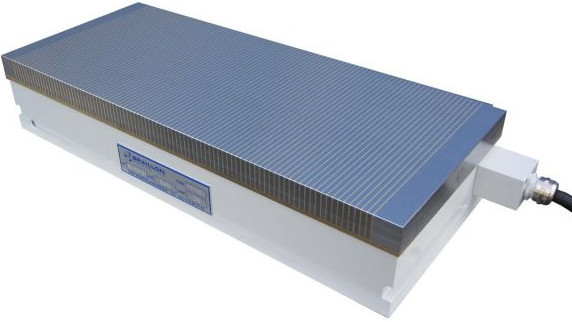

Electro-permanent magnetic chuck type EPEFINE2

Waterproof construction

Low magnetic field

. Multicoil electro-permanent system
. Parallel small pole pitch throughout the whole width of the chuck
. Uniform and strong magnetic field over the whole surface

Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

Use :
- Grinding
- EDM
- metrology

Nominal force :
- 110 N/cm²
Pole pitch :
- 5 mm
- 1 mm of brass
- 4 mm of steel
Admissible wear of top plate :
- 8 mm
Magnetic field height :
- 5 mm
Voltage :
- 340 VDC
- 400 VAC

Options :

- Other sizes on request
- Electromagnetic execution
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes

Elektro Permanent Magnetspannplatte zum Schleifen

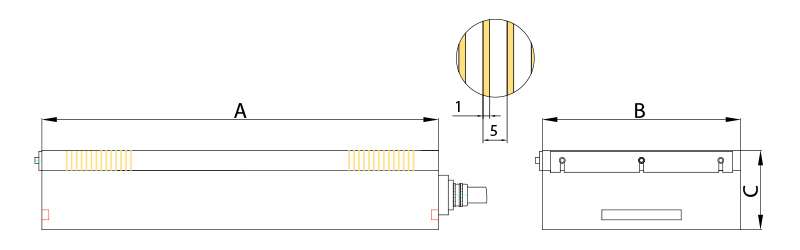

Product	Weight in kg	A	B	C
10.25.5.255130	20,0	255	130	68
10.25.5.300150	27,0	300	150	68
10.25.5.300200	34,0	500	200	68
10.25.5.350150	31,0	350	150	68
10.25.5.400150	34,0	400	150	68
10.25.5.400200	44,0	400	200	68
10.25.5.400300	64,0	400	300	68
10.25.5.450150	38,0	450	150	68
10.25.5.450200	49,0	450	200	68
10.25.5.500200	54,0	500	200	68
10.25.5.500250	66,0	500	250	68
10.25.5.500300	78,0	500	300	68
10.25.5.600200	65,0	600	200	68
10.25.5.600250	80,0	600	250	68
10.25.5.600300	95,0	600	300	68
10.25.5.600400	124,0	600	400	68
10.25.5.700300	109,0	700	300	68
10.25.5.700400	143,0	700	400	68
10.25.5.800300	124,0	800	300	68
10.25.5.800400	162,0	800	400	68
10.25.5.800500	200	800	500	68
10.25.5.800600	238	800	600	68
10.25.5.1000300	204	1000	300	89
10.25.5.1000400	267	1000	400	89
10.25.5.1000500	332	1000	500	89
10.25.5.1200400	321	1200	400	89
10.25.5.1200500	399	1200	500	89
10.25.5.1200600	476	1200	600	89
10.25.5.1500500	498	1500	500	89
10.25.5.1500600	594	1500	600	89
