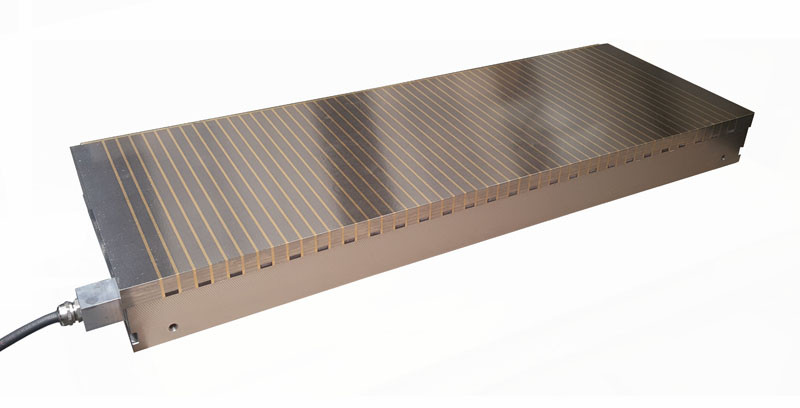

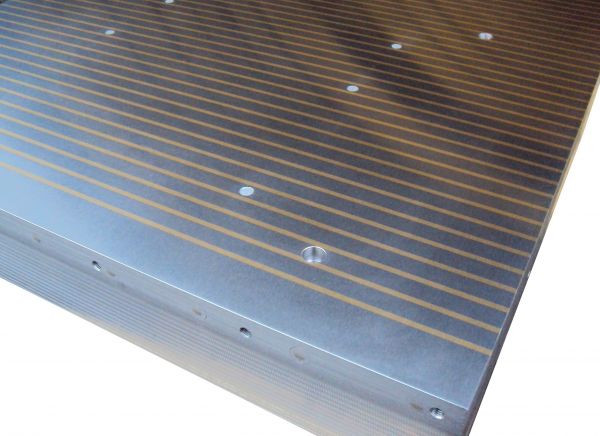

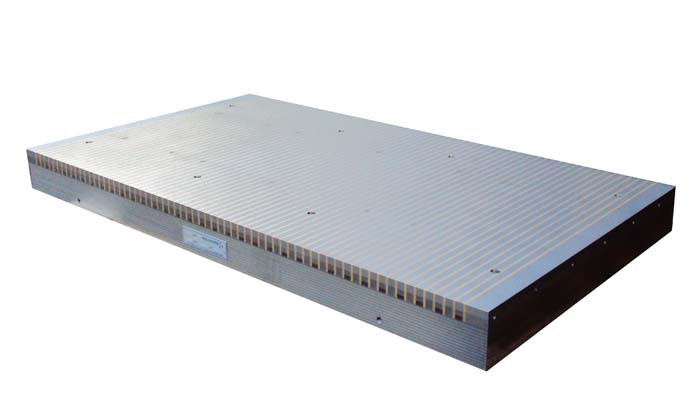

Electro-permanent magnetic chuck type EPICA

    • Heavy duty construction
    • Waterproof construction

. Electropermanent system
. Parallel transversal pole pitch throughout the whole width of the chuck
. Uniform and strong magnetic field
. Extremely stable construction

Scope of delivery:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps
  • Use :
    • Grinding
    • EDM
    • Machining
  • Nominal force :
    • 110 N/cm²
  • Pole pitch :
    • 13/18/25 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5/8/10 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request
- Electromagnetic execution
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes
Braillon Elektro Permanent Magnetspannplatte EPICA

D = Power
Qty Product Weight in kg A B C
10.23.30015025,030015077
10.23.45015030,045015077
10.23.40020040,040020077
10.23.50020050,050020077
10.23.60020066,060020077
10.23.60025075,060025077
10.23.800250100,080025077
10.23.1000250165,0100025077
10.23.50030075,050030077
10.23.60030090,060030077
10.23.700300110,070030077
10.23.900300176,090030077
10.23.1000300190,0100030077
10.23.1200300270,0120030077
10.23.1500300311,0150030077
10.23.600400120,060040080
10.23.80040080,080040080
10.23.1000400215,0100040080
10.23.1200400255,0120040080
10.23.800500195,080050090
10.23.1000500270,0100050090
10.23.1500500450,0150050090
indication_tableau_dessus
