REF 10.32.25

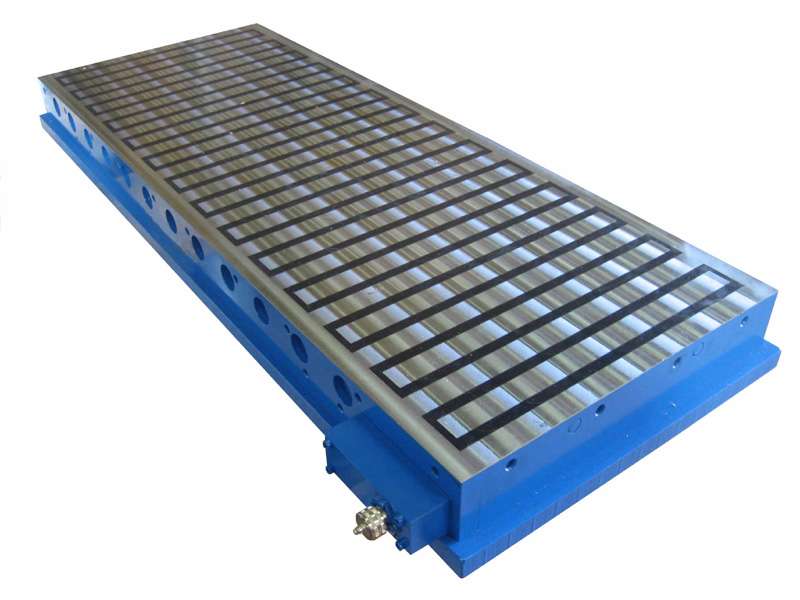

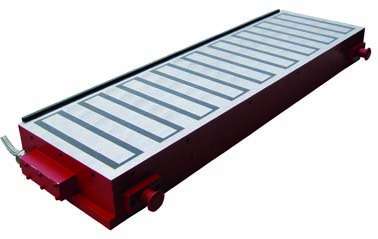

Electro-permanent Magnetic Chuck type TURBOMILL 25B

High holding power

Heavy duty construction

. Double magnet system with extremely high holding force
. Top plate made of Steel+Epoxy resin
. Sturdy construction suitable for heavy machinings
. Ideal for milling of large workpieces and slabs
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.02.BFR.400/480 and 50.10.T10
Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

Use :
- Milling
- Drilling
- Contouring

Nominal force :
- 165 N/cm²
Pole pitch :
- 37 (25+12) mm
Admissible wear of top plate :
- 5 mm
Magnetic field height :
- 12 mm
Voltage :
- 340 VDC

Options :

- Other sizes on request

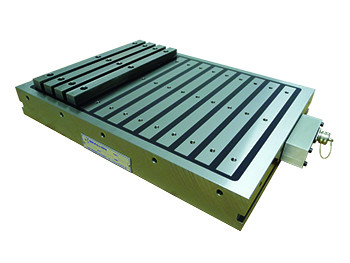

- Pole extensions to raise the workpieces
- Metal armoured cable with watertight connector
- Through holes to fix the chuck on the machine table
- Cable connection on the long side

Product	Weight in kg	A	B	C	D
10.32.25.395300	61	395	300	70	9
10.32.25.395400	81	395	400	70	9
10.32.25.469300	72	469	300	70	11
10.32.25.469400	95	469	400	70	11
10.32.25.543300	83	543	300	70	13
10.32.25.543400	110	543	400	70	13
10.32.25.617300	94	617	300	70	15
10.32.25.617400	124	617	400	70	15
10.32.25.691300	105	691	300	70	17
10.32.25.691400	139	691	400	70	17
10.32.25.765300	116	765	300	70	19
10.32.25.765400	153	765	400	70	19
10.32.25.839300	126	839	300	70	21
10.32.25.839400	168	839	400	70	21
10.32.25.839500	210	839	500	70	21
10.32.25.987300	148	987	300	70	25
10.32.25.987400	197	987	400	70	25
10.32.25.987500	197	987	500	70	25
10.32.25.987600	295	987	600	70	25
10.32.25.987800	392	987	800	70	25
10.32.25.1209400	241	1209	400	70	31
10.32.25.1209500	300	1209	500	70	31
10.32.25.1209600	360	1209	600	70	31
10.32.25.1357400	270	1357	400	70	35
10.32.25.1357500	337	1357	500	70	35
10.32.25.1357600	404	1357	600	70	35
10.32.25.1505400	299	1505	400	70	39
10.32.25.1505500	373	1505	500	70	39
10.32.25.1505800	596	1505	800	70	39
10.32.25.1653500	410	1653	500	70	43
