REF 22.22
  • 22-22a-bd-5319

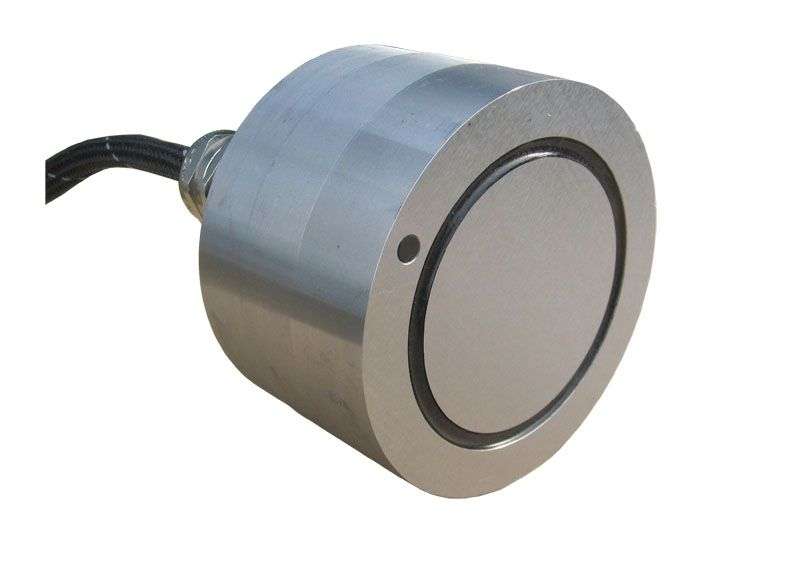

Electro-permanent Magnetic Holder type FUSELINK-VEP

    • Long service life
    • Safe
    • Effective
    • Heavy duty & compact construction

. Ideal for robots, automation
. Electro-permanent magnetic system
. Equipped with proximity switch
. Energized by BUR control unit
  • Use :
    • Lifting
    • Handling
  • Voltage :
    • 195 / 340 VDC
  • Duty cycle :
    • 100 %
22-22-5450

Qty Product Weight in kg A B C D E F G
22.22.62.65.195-6265523xM618-200 DaN
22.22.120.75.1956,4120751045xM82852325 DaN
22.22.180.70.195918070--27-800 DaN
22.22.200.70.34012200701564xM1270351200 DaN
22.22.250.70.34016250702124xM1470-1500 DaN
