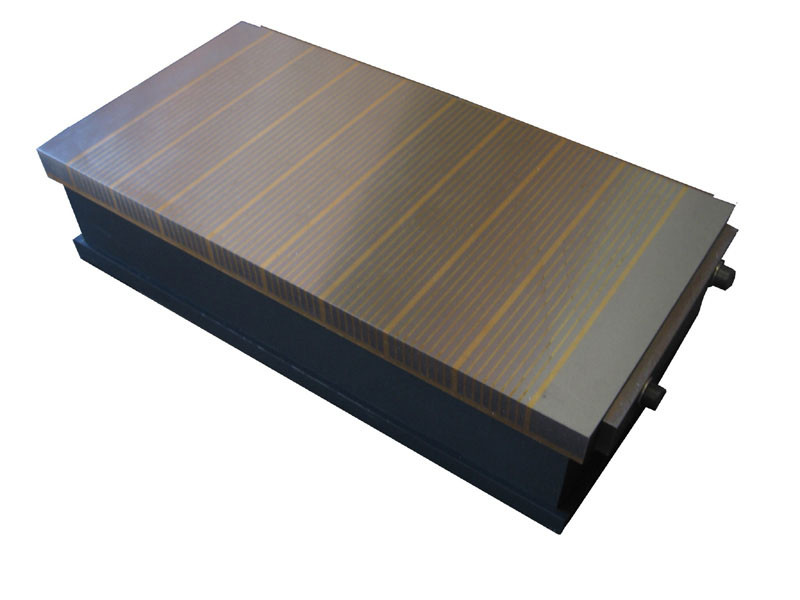

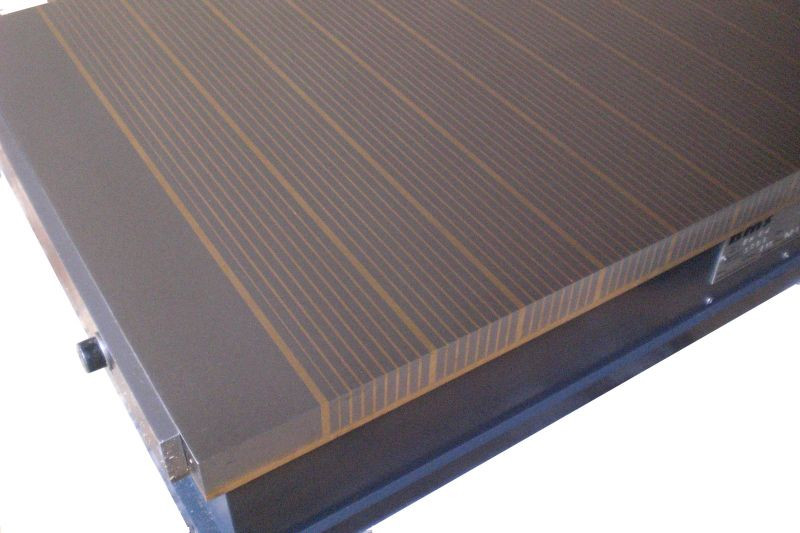

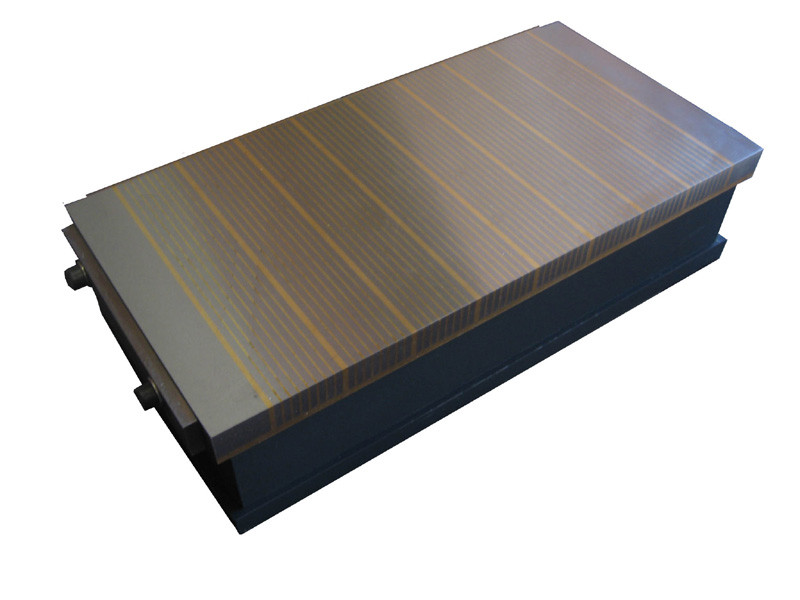

Electromagnetic chuck type BJP

    • High holding power
    • Twin magnetic system
    • Heavy duty construction
    • Waterproof construction

. Multicoil electromagnetic system
. Uniform and strong magnetic field over the whole surface

Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps



  • Use :
    • Grinding
  • Nominal force :
    • 125 N/cm²
  • Pole pitch :
    • 5 mm
    • 1 mm of brass
    • 4 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 8 mm
  • Voltage :
    • 110 VDC
Options :

- Other sizes on request
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes

10-21-800px-5011

D = Power
Qty Product Weight in kg A B C D
10.21.35015025,03501507472W
10.21.40020051,040020098111W
10.21.45020057,545020098123W
10.21.50025080,050025098156W
10.21.60020077,060020098159W
10.21.60025096,060025098187W
10.21.600300115,060030098215W
10.21.600350134,060035098242W
10.21.600400153,060040098270W
10.21.65022091,065022098183W
10.21.80015085,0800150100198W
10.21.800250130,0800250100244W
10.21.800300157,0800300100280W
10.21.800350183,0800350100316W
10.21.800400209,0800400100352W
10.21.90015092,0900150100206W
10.21.900300176,0900300100312W
10.21.1000150101,01000150103215W
10.21.1000300201,01000300103347W
10.21.1000400296,01000400103435W
