REF 10.24
  • Elektromagnet Spannplatte EMU
  • Elektromagnet Spannplatte EMU
  • Elektromagnet Spannplatte EMU
Elektromagnet Spannplatte EMUElektromagnet Spannplatte EMUElektromagnet Spannplatte EMU

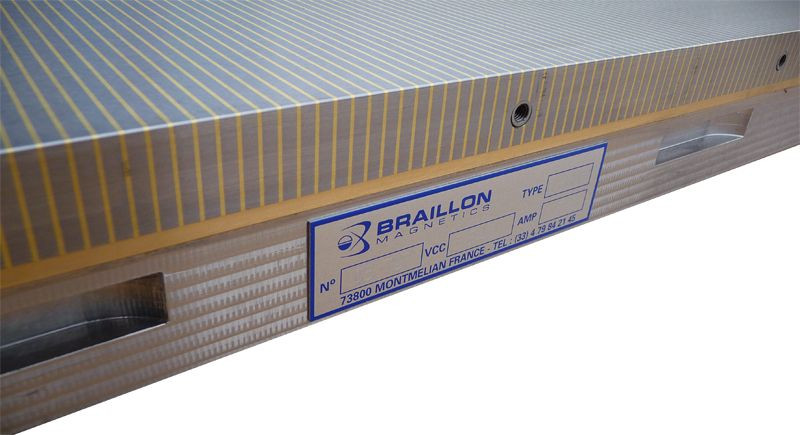

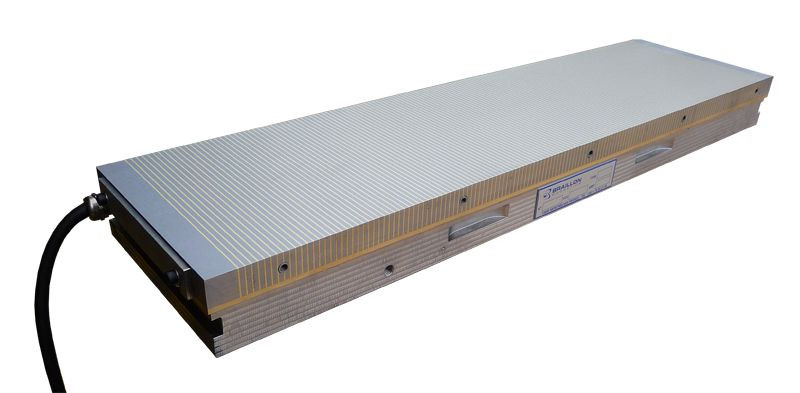

Electromagnetic chuck type EMU

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. Multicoil electromagnetic system
. Parallel small pole pitch throughout the whole width of the chuck
. Uniform and strong magnetic field over the whole surface

Included with purchase:

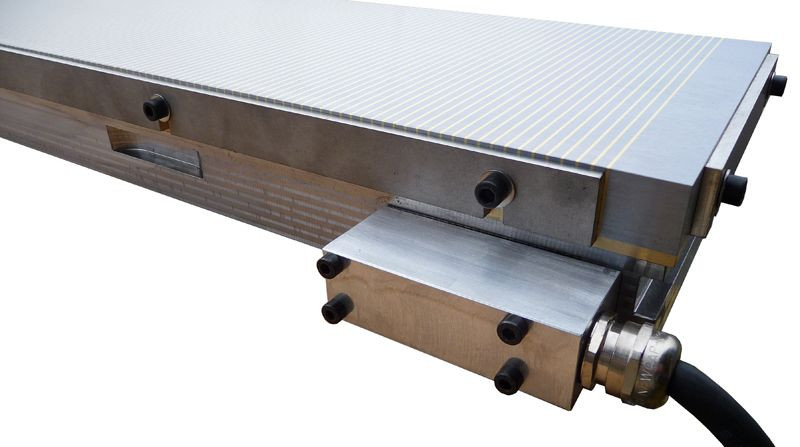

- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps
  • Use :
    • Grinding
    • EDM
    • metrology
  • Nominal force :
    • 120 N/cm²
  • Pole pitch :
    • 5 mm
    • 1 mm of brass
    • 4 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5 mm
  • Voltage :
    • 110 VDC
Options :
- Other sizes on request
- Electro-permanent execution
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes
10-24-800px-5014

D = Power
Qty Product Weight in kg A B C D
10.24.5.30015025,03001507757W
10.24.5.45015035,04501507781W
10.24.5.50020047,050020077122W
10.24.5.60020056,060020077143W
10.24.5.60025074,060025077168W
10.24.5.700250105,070025079223W
10.24.5.1000250145,0100025082302W
10.24.5.50030074,050030077171W
10.24.5.60030089,060030077194W
10.24.5.700300106,070030079223W
10.24.5.900300136,090030079281W
10.24.5.1000300158,0100030082312W
10.24.5.1200300202,0120030082392W
10.24.5.1500300320,0150030090478W
10.24.5.600400119,060040077243W
10.24.5.800400164,080040079317W
10.24.5.1000400212,0100040082392W
10.24.5.1200400254,0120040082464W
10.24.5.800500194,080050084386W
10.24.5.1000500267,0100050087477W
10.24.5.1500500440,0150050090703W
