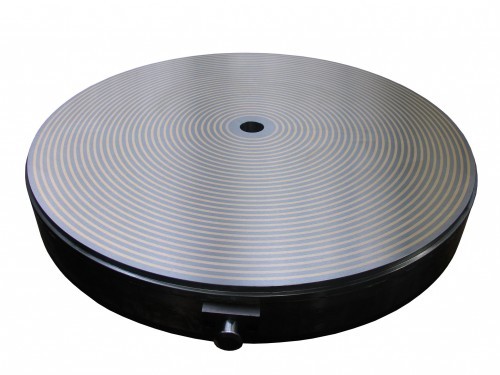

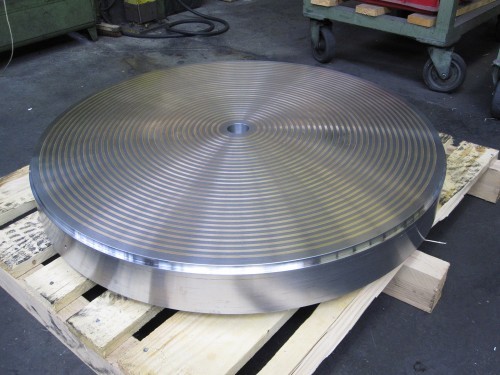

Electromagnetic Circular Chuck type BC

    • High holding power
    • Heavy duty construction

. Electromagnetic circular chuck with concentric poles
. Uniform, strong and low magnetic field
. Suitable for simultaneous machining of several workpieces
. The smallest workpiece thickness: 4 mm
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.04.BUE.230 / 50.05.T.BUET.230/400 and 50.10.T10
Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)
  • Use :
    • Grinding
    • Turning
  • Nominal force :
    • 110 N/cm²
  • Pole pitch :
    • 9 ou 16 mm
    • 4 mm of brass
    • 5 ou 12 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 4 mm
  • Voltage :
    • 110 VDC
Options :
- Other sizes and voltages on request
- Through hole in the middle
- Through holes to fit the chuck on the machine table
- Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
 A2 DIN 55026
 Bayonet DIN 55027
 Camlock DIN 55029
11-11-800px-36334

Qty Product Weight in kg A B C D E F G H I J
11.11.9.200.11015,020010514100H7--4xM105209
11.11.9.300.11052,030010516150H7--4xM125209
11.11.9.400.11089,030010516200H7--6xM125409
11.11.9.500.110141,050012016250H7--6xM125609
11.11.9.600.110204,060012018350H7--6xM125809
11.11.9.700.110278,070012018400H7--6xM125809
11.11.9.800.110383,080012018450H7--6xM1251009
11.11.9.1000.110578,0100013018600H7--8xM1651509
11.11.16.200.11015,020010514100H7--4xM1052016
11.11.16.300.11054,030010516150H7--4xM1252016
11.11.16.400.11089,040010516200H7--6xM1254016
11.11.16.500.110141,050012016250H7--6xM1256016
11.11.16.600.110204,060012018350H7--6xM1258016
11.11.16.700.110278,070012018400H7--6xM1258016
11.11.16.800.110383,080012018450H7--6xM16510016
11.11.16.1000.110620100013018600H7--8xM16515016
indication_tableau_dessus
