REF 11.10
  • 11-10-erc-35736
  • mandrins-electropermanents-et-elctromagnetiques-315-4995
11-10-erc-35736mandrins-electropermanents-et-elctromagnetiques-315-4995

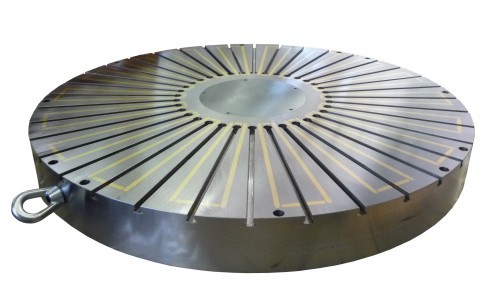

Electromagnetic Circular Chuck type ERC

    • High holding power
    • Heavy duty construction
    • Attractive prices !

. Electromagnetic radial pole circular chuck with high holding force
. Space between the poles filled with epoxy resin or with brass (optional)
. For ring-shaped workpieces
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.04.BUE.230 / 50.05.T.BUET.230/400 and 50.10.T10
Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)
  • Use :
    • Grinding
    • Turning
  • Nominal force :
    • 120 N/cm²
  • Admissible wear of top plate :
    • 8 mm
  • Voltage :
    • 110 VDC
Options :
- Other sizes and voltages by request
- T-slots in each pole
- Through hole in the middle
- Customized raising pole shoes
- Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
 A2 DIN 55026
 Bayonet DIN 55027
 Camlock DIN 55029
11-10-800px-36333

Qty Product Weight in kg A B C D E F G H I J
11.10.100.6.3404,01009012---3xM83356
11.10.150.6.3409,01509014---3xM104356
11.10.200.8.34018,02009014---4xM103458
11.10.250.8.34029,02509016---4xM124658
11.10.300.12.34042,03009016---4xM1248512
11.10.400.12.34076,04009016---6xM12510012
11.10.500.16.340120,05009016- --6xM12515016
11.10.600.16.340195,060010018---6xM16518016
11.10.700.16.340265,070010018---6xM16520016
11.10.800.24.340365,080010018---6xM16520024
11.10.1000.24.340550,0100010018---8xM16525024
