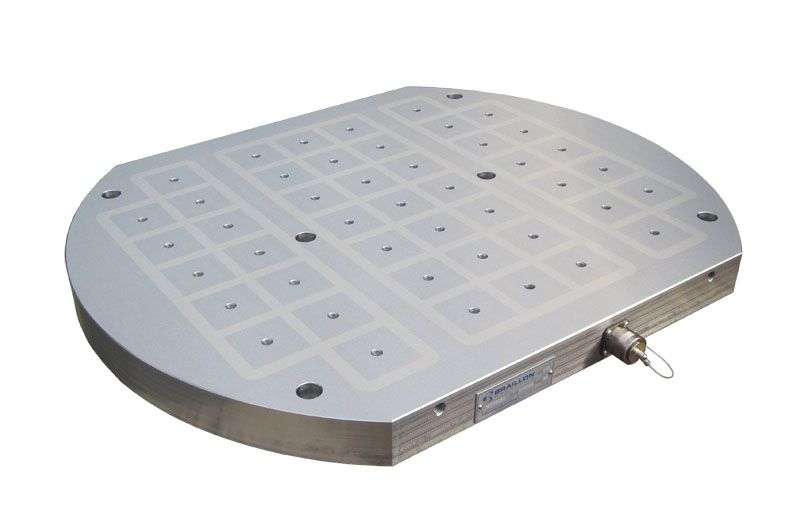

Electropermanent Magnetic Chuck type TURBOMILL 50SQ3

    • High holding power
    • Heavy duty construction
    • Waterproof construction

. Electropermanent magnetic system with extremely sturdy monoblock construction
. Space between the poles filled with stainless steel
. Ideal for milling of large workpieces and slabs
. All square poles equipped with M8 threaded holes
. Power connection through watertight quick connector

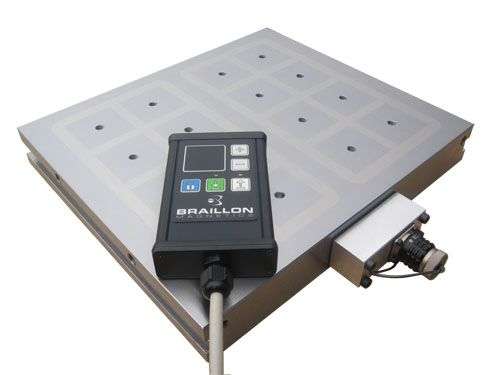

. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.01.BUR.230/400 and 50.10.T10
Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

  • Use :
    • Milling
    • Drilling
    • Contouring
    • Planning
  • Force by pole :
    • 400 daN
  • Pole pitch :
    • 60 mm
  • Admissible wear of top plate :
    • 4 mm
  • Magnetic field height :
    • 10 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request

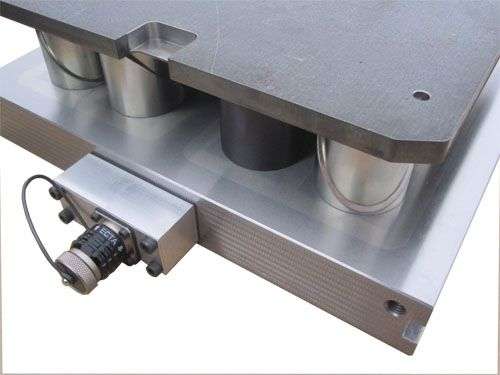

- Pole extensions to raise the workpieces
- Through holes to fix the chuck on the machine table
- Cable connection on the long side

10-33-36297

D = Nb poles
Qty Product Weight in kg A B C D
10.33.50.SQ3.32032030,03203204316
10.33.50.SQ3.49029544,04902954324
10.33.50.SQ3.49042063,04904204336
10.33.50.SQ3. 49047571,04904754342
10.33.50.SQ3.49057586,04905754348
10.33.50.SQ3.64029558,06402954332
10.33.50.SQ3.64042083,06404204348
10.33.50.SQ3.64047593,06404754356
10.33.50.SQ3.640575113,06405754364
10.33.50.SQ3.79529571,07952954340
10.33.50.SQ3.795420102,07954204360
10.33.50.SQ3.795475116,07954754370
10.33.50.SQ3.795575140,07955754380
10.33.50.SQ3.95029595,09502954348
10.33.50.SQ3.950420122,09504204372
10.33.50.SQ3.950475137,09504754384
10.33.50.SQ3.950575168,09505754396
indication_tableau_dessus
To request a quote
