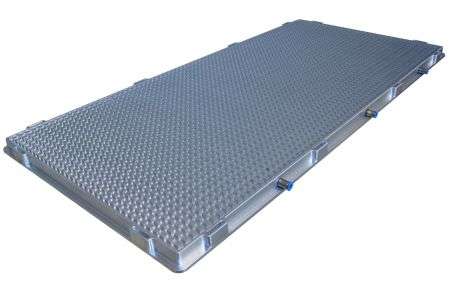

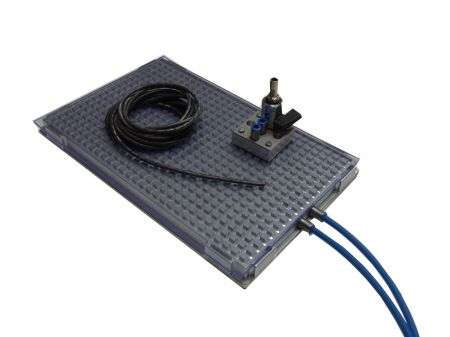

Grid Type Vacuum Chuck for Engraving

. Grid type vacuum chuck with reinforced grid for engraving
. 2 different groove pitches:
VRS12AL: 12.5 mm pitch, execution in aluminium
VRS25AL: 25 mm pitch, execution in aluminium
. The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15
. Corresponding vacuum pump: 30.10 / 30/20
Included with purchase:

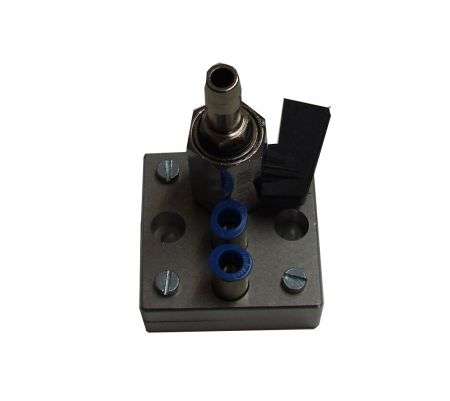

- Air hose connector
- End stops
  • Use :
    • Grinding
    • Milling
    • Planning
    • Engraving
Options :
- Another position of air connection
- Multiple independent zones
- Special execution, palletizing
- With steel base plate for use on magnetic chucks

Qty Product Weight in kg A B
30.08.2002004,8200200
30.08.3002006,9300200
30.08.4002008,9400200
30.08.2101003210100
30.08.70035019700350
