  • LAMINATED BLOCK TYPE TB

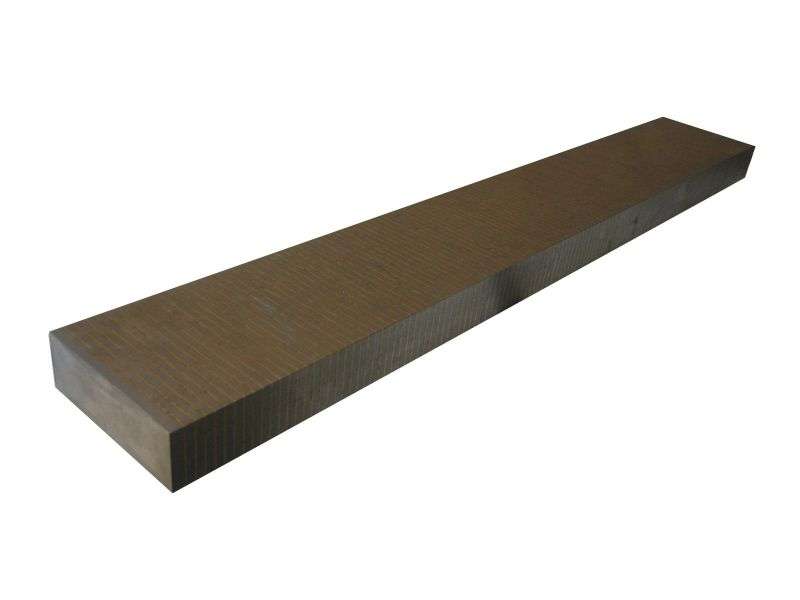

Laminated Blocks type TB

    • Silver brazed top plate
    • Heavy duty construction

. Made of silver brazed steel and brass laminations.
. Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting laminations direction) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.

  • Use :
    • Grinding
    • EDM
    • Milling
    • metrology
    • Drilling
  • Pole pitch :
    • mm
    • mm of brass
    • mm of steel
Options :
- Other sizes available on request
- Other pole pitch execution
- Delivered in pairs

14-01-02-03-04-800px-5044

Qty Product Weight in kg A B C D
14.02.573215B.P0,25732153 + 1
14.02.975726B.P1,29757263 + 1
14.02.1007525B1,510075253 + 1
14.02.2007525B3,020075253 + 1
14.02.2507525B3,825075253 + 1
14.02.3007525B4,630075253 + 1
14.02.4007525B6,140075253 + 1
14.02.5007525B7,650075253 + 1
14.02.20010025B4,0200100253 + 1
14.02.25010025B5,0250100253 + 1
14.02.30010025B6,0300100253 + 1
14.02.40010025B8,0400100253 + 1
14.02.50010025B10,1500100253 + 1
14.02.1007540B2,510075403 + 1,5
14.02.2007540B4,920075403 + 1,5
14.02.2507540B6,125075403 + 1,5
14.02.3007540B7,430075403 + 1,5
14.02.4007540B9,840075403 + 1,5
14.02.5007540B12,250075403 + 1,5
14.02.20010040B6,4200100403 + 1,5
14.02.25010040B8,0250100403 + 1,5
14.02.30010040B9,6300100403 + 1,5
14.02.40010040B12,8400100403 + 1,5
14.02.50010040B16,2500100403 + 1,5
