REF 13.37
  • 13.37 MAGNETIC VEE BLOCK TYPE VM 100
  • 13-37g-36099
13.37 MAGNETIC VEE BLOCK TYPE VM 10013-37g-36099

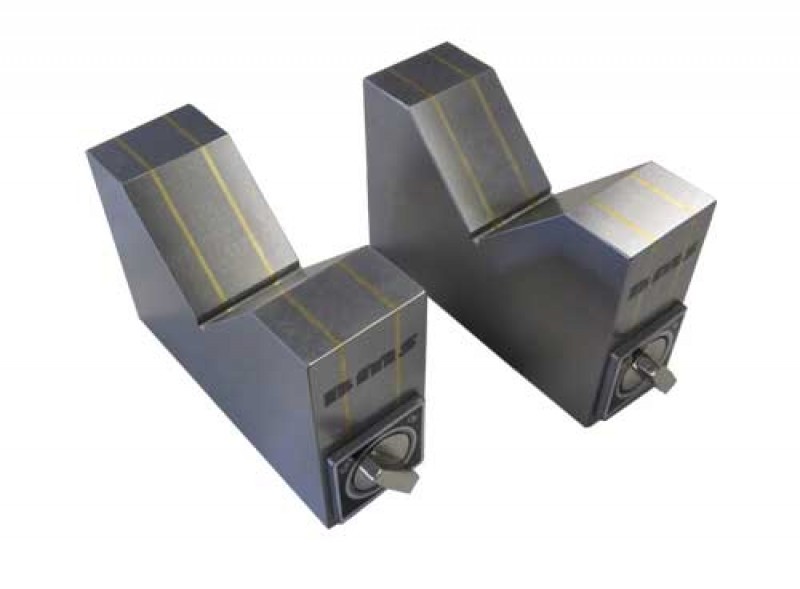

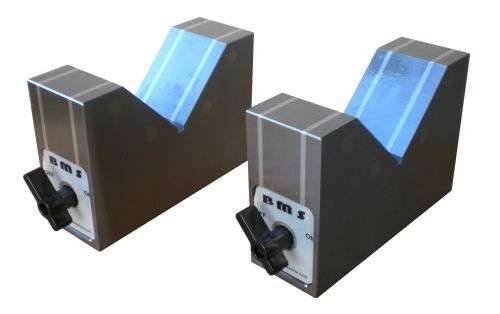

Narrow Magnetic Vee Blocks type VM100

    • Heavy duty construction
    • Waterproof construction

. 3 active faces (vee, front, rear)
. Stable construction
. With integrated ON/OFF switch
Included with purchase:
- Delivered in pairs
  • Use :
    • Grinding
    • EDM
    • metrology
    • Positionning
  • Parallelism :
    • 0,01-0,02 mm
v-13-37-800px-5042-5335

E = Force
Qty Product Weight in kg A B C D E F
13.37.702,0704050Ø5015daN0,01
13.37.1006,01005080Ø8020daN0,015
13.37.15010,015050100Ø12523daN0,02
13.37.70G2,0704050Ø5015daN-
13.37.100G6,01005080Ø8020daN-
13.37.150G10,015050100Ø12523daN-
indication_tableau_dessus
