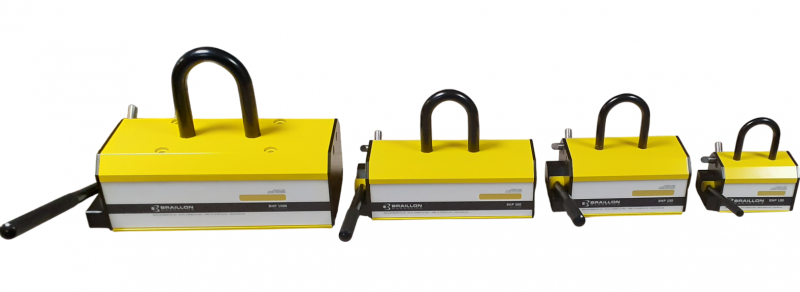

Permanent Lifting Magnet type BHP

    • Safe
    • Safety factor of more than 3:1
    • Low sensiblility to airgap
    • According to EN13155 standard
    • Light

. Easy to handle permanent lifting magnets for use in various applications
. For handling of ferrous material loads
. Smooth and durable ON/OFF lever
. For use with both flat and round material
. Equipped with safety lock to maintain the lever in ON position
. For safe lifting and handling of ferromagnetic materials
. You can order special pole shoes adapted to your application (for example: 20.01+HT/ 20.01+CY/ 20.01+RA/ 20.01+RO/ 20.01+TV/ 20.01+BA/ 20.01+SPE)
. Maximum lifting force certificate is issued after the tests in order to ensure maximum safety when using the magnets with special pole shoes

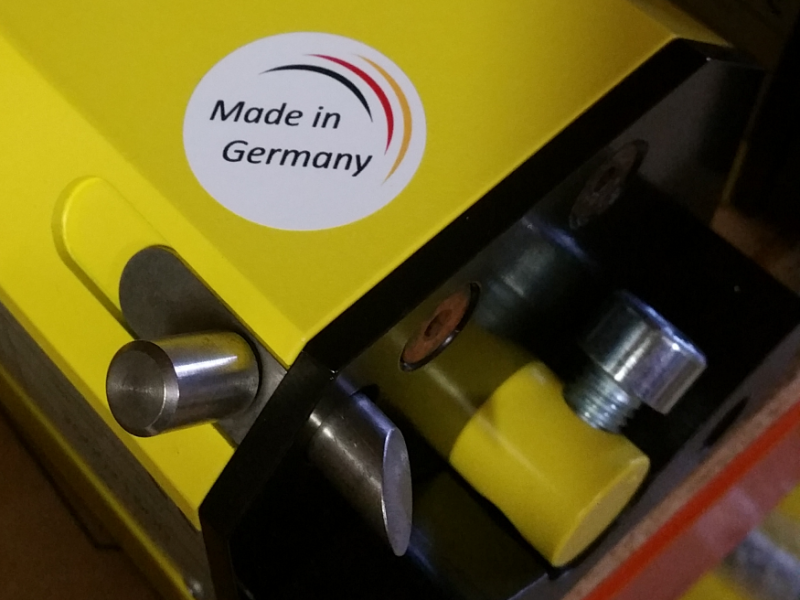

. BHP magnets are manufactured and certified in Germany



  • Use :
    • Positionning
    • Mounting
    • Lifting
    • Handling
    • Clamping
    • Transport
Options :
- Special pole shoes for elements with complex geometry
- Beam for several lifting magnets
- ON/OFF integration for automation
20-01-800px-5062

F = Holding force flat/round
G = Mini thickness force 100%
H = Diameter
Qty Product Weight in kg A B C D E F G H
20.01.N1004,012568705440100/50daN15Ø 30-200
20.01.N2509,519198878450250/125daN25Ø 30-180
20.01.N50013,025598878950500/215daN30Ø 30-180
20.01.N100031,5321140109105651000/450daN50Ø 200-600
20.01.2000110,00487176182149n.a.2000/900daN30Ø 120-400
20.01.3000170,00550230186195n.a.3000/1350daN50Ø 150-400
20.01.5000475,00614370312240n.A.5000/2250daN60Ø 200-450
