REF 13.35
  • Permanent magnetic block type VM110
  • Permanent magnetic block type VM110
  • Permanent magnetic block type VM110
Permanent magnetic block type VM110Permanent magnetic block type VM110Permanent magnetic block type VM110

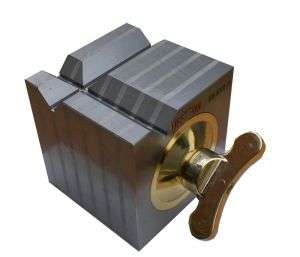

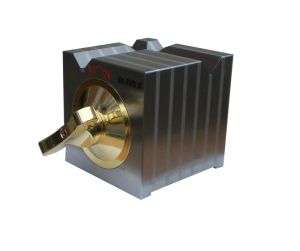

Permanent Magnetic block type VM110

    • Heavy duty construction
    • Waterproof construction

. 4 active faces (vee, top, 2 sides)
. Stable construction, can be used with coolant
. Vees in X and Y axes
. ON/OFF switch
Included with purchase:
- A= 80/125/180 = with removable Allen key (13.35.xx)
- A= 100/150 = with integrated actuacting key (13.35S.xx)
  • Use :
    • Grinding
    • EDM
    • Machining
    • Positionning
13-35-800px-5041

E = Force
Qty Product Weight in kg A B C D E
13.35.803,5808080Ø10-25/ Ø8-2512daN/10daN
13.35.12514,0125125125Ø10-40/ Ø10-2630daN/ 25daN
13.35.15023,0150150150Ø10-40/ Ø10-3840daN/ 40daN
13.35.18037,0180180180Ø14-50/ Ø14-5040daN/ 40daN
13.35S.1006,3100100100Ø2630daN/25daN
13.35S.15021,3150150150Ø3260daN/35daN
indication_tableau_dessus
