REF 12.10.EQ
  • 12.10-EQPF2-Permanent magnetic square model EQ/PF
  • 12.10 Magnetspannwinkel
  • 12-10-v-36729
12.10-EQPF2-Permanent magnetic square model EQ/PF12.10 Magnetspannwinkel12-10-v-36729

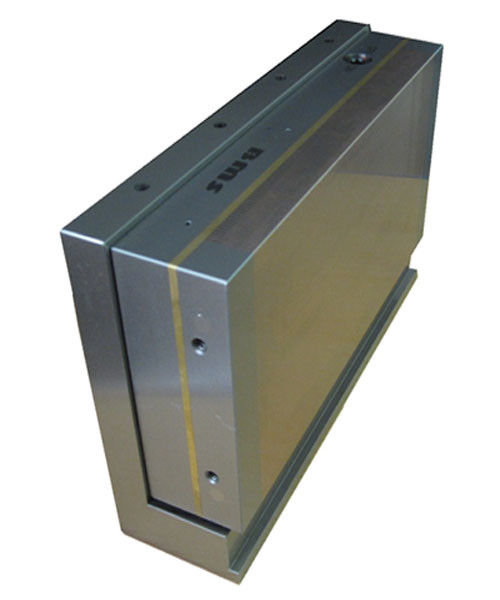

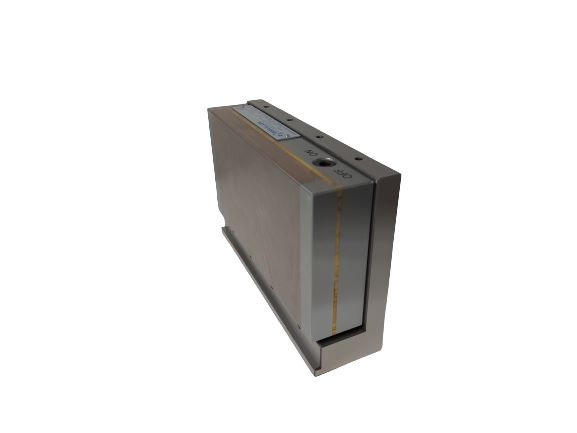

Permanent Magnetic Chcuk fitted to Angle Plate EQ/PF2

    • High holding power
    • Waterproof construction

. Magnetic chuck with NEODYMIUM (rare earth) magnets
. Parallel pole pitch with steel + brass laminations
. For vertical clamping of workpieces
Included with purchase:
- 1 Actuating key
  • Use :
    • Grinding
    • EDM
    • metrology
  • Squareness :
    • +/- 0,002 mm
  • Parallelism :
    • +/- 0,002 mm
  • Nominal force :
    • 100 N/cm²
  • Pole pitch :
    • 2 mm
    • 1 mm of brass
    • 1 mm of steel
  • Admissible wear of top plate :
    • 6 mm
Options :
- With other magnetic chucks on request
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli

10-01eq-800px-5005-35958

Qty Product Weight in kg A B C D E F G H I
12.10.EQ.175759,71757513018011167206530
12.10.EQ.1751001317510013018013667206530
12.10.EQ.2501252325012520525516167206530
indication_tableau_dessus
To request a quote
  • Enter amounts in the table above
  • Fill in the contact form below
