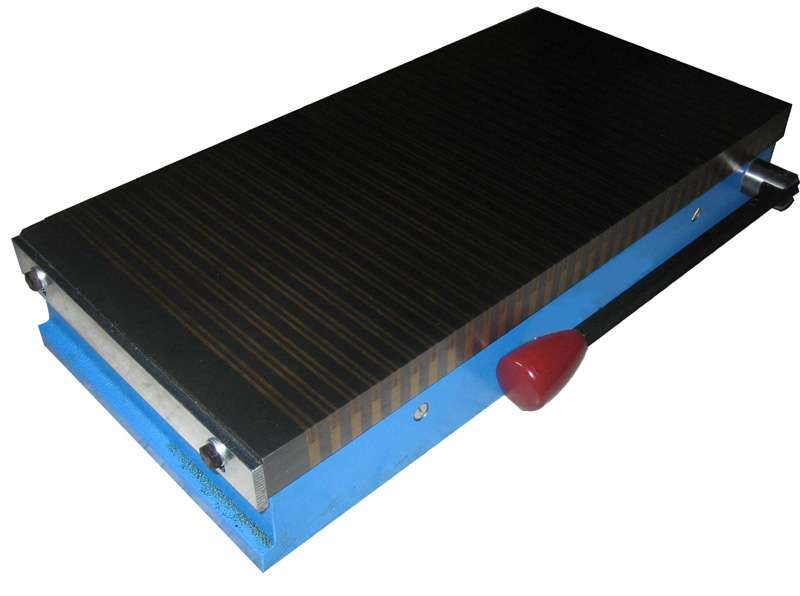

Permanent Magnetic Chuck type FF
-
- Silver brazed top plate
- Heavy duty construction
- Waterproof construction
- Low magnetic field
-
- Silver brazed top plate
- Heavy duty construction
- Waterproof construction
- Low magnetic field
. Permanent magnetic chuck with FERRITE magnets
. Parallel fine pole pitch with steel + brass
. Integrated actuating handle
Included with purchase:
- Long and short side end stops
- Clamps
. Parallel fine pole pitch with steel + brass
. Integrated actuating handle
Included with purchase:
- Long and short side end stops
- Clamps
-
Use :
- Grinding
- EDM
-
Nominal force :
- 80 N/cm²
-
Pole pitch :
- 11 mm
-
Admissible wear of top plate :
- 8 mm
-
Magnetic field height :
- 4-5 mm
- Sine table execution
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
- Flushing holes in the top plate
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
- Flushing holes in the top plate
Qty | Product | Weight in kg | A | B | C | D | E |
---|---|---|---|---|---|---|---|
10.04.10065 | 3,0 | 100 | 65 | 54 | 119 | 10 | |
10.04.150100 | 7,0 | 150 | 100 | 65 | 165 | 15 | |
10.04.250150 | 15 | 250 | 150 | 65 | 258 | 15 | |
10.04.350150 | 21 | 350 | 150 | 65 | 358 | 13 | |
10.04.450150 | 26 | 450 | 150 | 65 | 458 | 15 | |
10.04.400200 | 32 | 400 | 200 | 72 | 413 | 15 | |
10.04.500200 | 40 | 500 | 200 | 72 | 515 | 15 | |
10.04.600300 | 100 | 600 | 300 | 93 | 595 | 20 |
