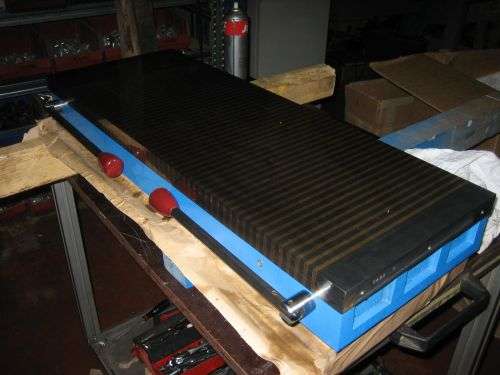

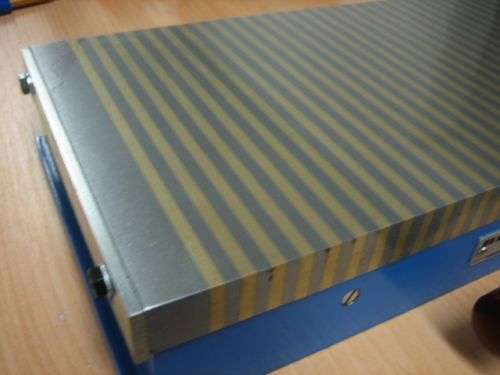

Permanent Magnetic Chuck type FM

    • High holding power
    • Twin magnetic system
    • Silver brazed top plate
    • Heavy duty construction
    • Waterproof construction

. Permanent magnetic chuck with FERRITE magnets
. Parallel pole pitch with steel + brass
. Twin magnetic system (magnets inserted into the body and into the top plate)
. Integrated actuating handle
Included with purchase:
- Long and short side end stops
- Clamps


  • Use :
    • Milling
    • Drilling
    • Contouring
    • Machining
  • Nominal force :
    • 120 N/cm²
  • Pole pitch :
    • 13 mm
    • 5 mm of brass
    • 8 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 8-10 mm
Options :
- Sine table execution
- Fitted to an angle iron for tombstone application
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
10-06a-36245

Qty Product Weight in kg A B C D E
10.06.25015020,02501509326020
10.06.35015027,03501509336020
10.06.45015034,04501509346020
10.06.40020040,04002009339520
10.06.50020050,05002009349520
10.06.60020062,06002009359520
10.06.500300905003009349520
10.06.6003001006003009359520
10.06.8003001308003009379520
10.06.100030018010003009399520
