REF 13.33
  • 13-33a-bd-35622

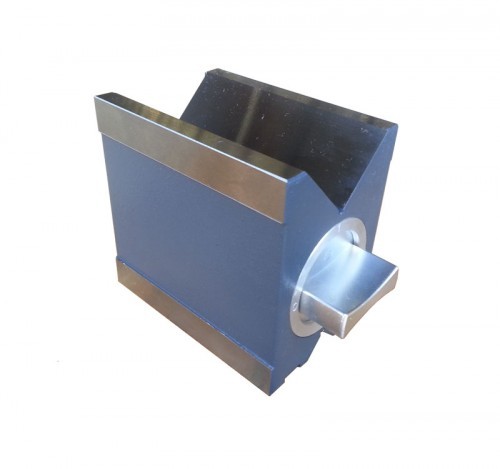

Permanent Magnetic Vee BLock type VM30

    • Heavy duty construction
    • Waterproof construction

. 5 active faces (vee,  bottom, rear)
. Precise construction
. With integrated ON/OFF switch
Included with purchase:
- Delivery in pairs (Article no. + "P")
- Single piece delivery (Article no.)
- Delivery hardened (Article no. + "T")

  • Use :
    • Grinding
    • EDM
    • metrology
    • Positionning
  • Parallelism :
    • 0.004 mm
13-33-800px-5039

E = Force
Qty Product Weight in kg A B C D E G
13.33.1004,01007096Ø 6-70120daN
13.33.100P8,01007096Ø 6-70120daN
13.33.100T4,01007096Ø 6-70120daN
13.33.100TP8,01007096Ø 6-70120daN
13.33.803,0806796Ø 6-6690daN
13.33.80P6,0806796Ø 6-6690daN
13.33.80T3,0806796Ø 6-6690daN
13.33.80TP6,0806796Ø 6-6690daN
indication_tableau_dessus
