REF 12.17

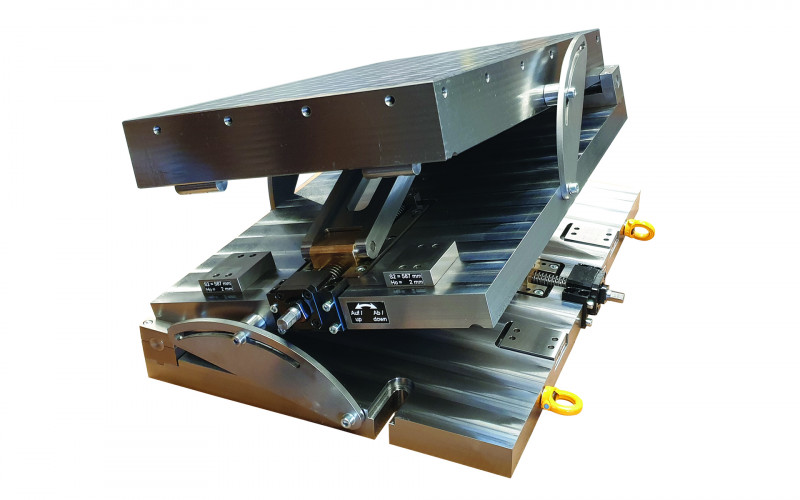

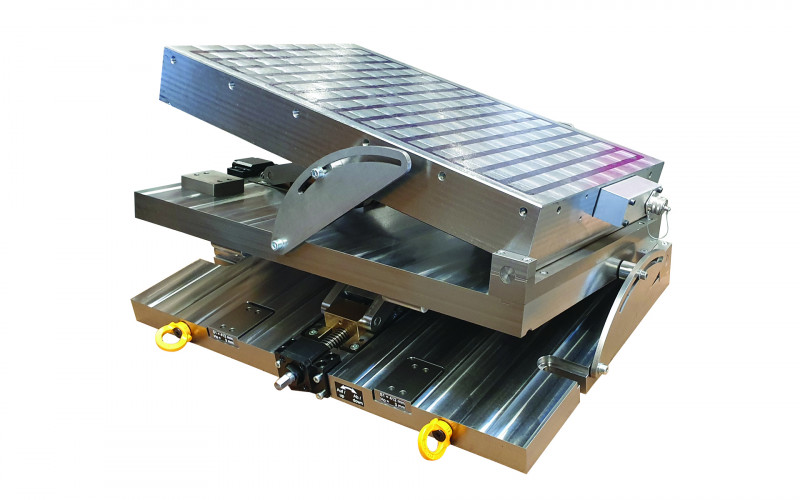

Magnetic milling chuck TURBOMILL 25B sinus double
-
- For millin chucks
- Sine
-
- Heavy duty construction
-
- For millin chucks
- Sine
-
- Heavy duty construction
Compensated electro-permanent magnetic system for milling operations, mounted on a sinusoidal base with reinforced double inclination.
Holds workpieces in the event of a power cut.
Transverse pole pitch: 37 mm. 25 mm steel + 12 mm resin.
Long side inclination: 0/45
Short side tilt: 0/15

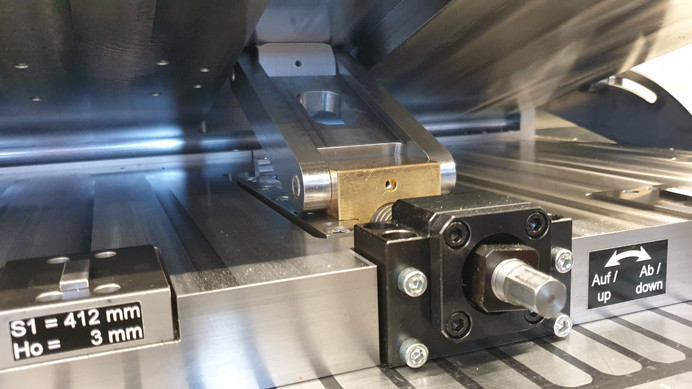

Worm screw adjustment system on both tilts.
Reinforced sinus base axes for milling.
Precision: 0.005 mm / 100 mm.
Reinforced top plate for high stability.
Through-hole mounting on sinus base.
Supplied with manual and sinus table chart.
Holds workpieces in the event of a power cut.
Transverse pole pitch: 37 mm. 25 mm steel + 12 mm resin.
Long side inclination: 0/45
Short side tilt: 0/15
Worm screw adjustment system on both tilts.
Reinforced sinus base axes for milling.
Precision: 0.005 mm / 100 mm.
Reinforced top plate for high stability.
Through-hole mounting on sinus base.
Supplied with manual and sinus table chart.
-
Use :
- Milling
