REF 40.13S.B04
  • 40-12s-a-bd-5403
  • 40-13s-c-bd-5405
  • 40-13s-b-bd-5404
40-12s-a-bd-540340-13s-c-bd-540540-13s-b-bd-5404

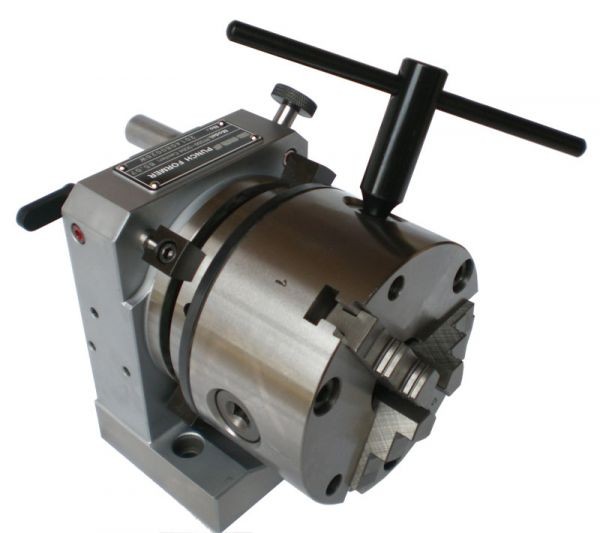

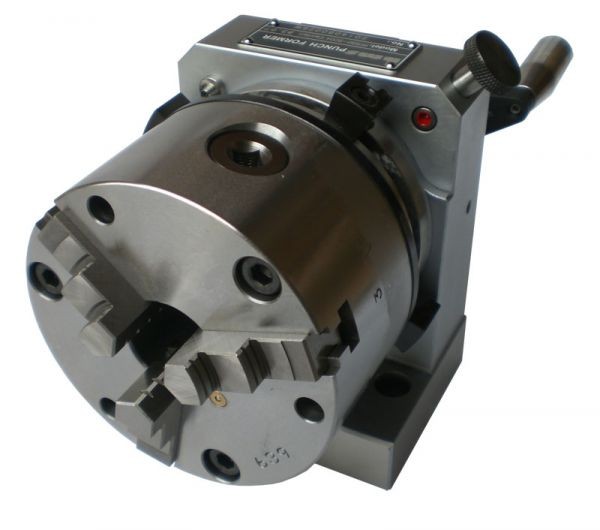

Punch former with 3 jaw chuck type AER/M85 B04

    • Heavy duty construction
    • Innovative
    • Safe
    • Effective

. Tool steel. All hardened and precision ground parts.
. Double bearing for maximum accuracy and stability,

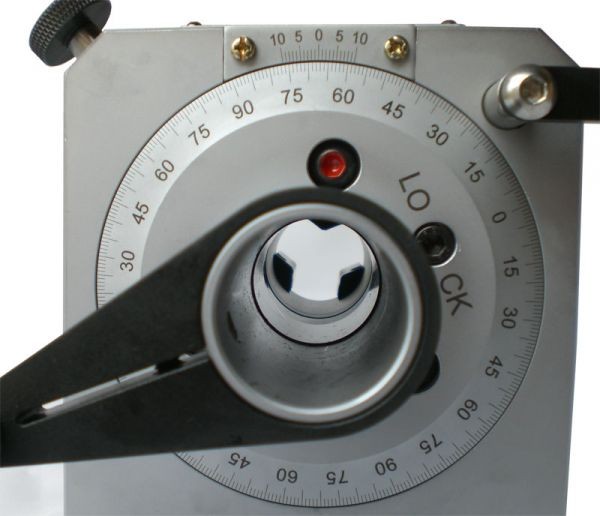

. 15 degree pitch: by +/- 30 seconds
. Shaft height 85 mm +/- 0.5 mm
. Through Hole: 25 mm
. Concentricity: 0.003 mm

B40: with collets
         Tensionable diameter 1-25 mm


B04: 3-jaw chuck
         Tensionable diameter 3-32 mm
  • Use :
    • Grinding
    • metrology
    • Punch former
40-13s-b04-36024

Qty Product Weight in kg A B C D E F G H
40.13S.B047,8113140852488399,7Ø112Ø24
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
