REF 20.30
  • circular electromagnet
  • circular electromagnet
  • circular electromagnet
  • circular electromagnet
  • circular electromagnet
circular electromagnetcircular electromagnetcircular electromagnetcircular electromagnetcircular electromagnet

Renforced round electromagnet type EMC-R

    • 1 multipole face
    • High holding power
    • Effective
    • Heavy duty & compact construction

. Robust steel housing
. For difficult application
. No heat coil
. Heat can be dissipated easily due to housing ribs
. No reduction of lifting capacity
. 3 lifting eyes
. Protective plate for electrical connection
. Coil class ¨C¨ insulation (240°C)
. Anodized aluminium stripped coil
. Flexible silicone casting compound

D= amp
E= nominal power
F= breaking away force (VDE0580)
G= lifting capacity (VDE0580)
  • Use :
    • Lifting
    • Handling
  • Voltage :
    • 220 VDC
  • Duty cycle :
    • 75 %
Options :
electrical cable
system of protection for active surface
special voltage
special fixation
circular electromagnet

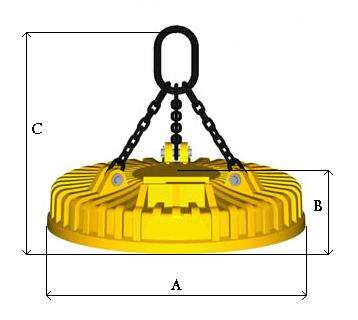

Qty Product Weight in kg A B C D E F G
20.30.10207001020210110025A5.5 kW18000 daN9000 daN
20.30.117010801170250115030A7 kW26000 daN13000 daN
20.30.127014001270270115040A9 kW32000 daN16000 daN
20.30.137517201375290115045A10 kW36000 daN18000 daN
20.30.153023001530310115055A12,5 kW45000 daN22500 daN
20.30.173033001730345140080A17,5 kW60000 daN30000 daN
20.30.2050610020504201500115A25 kW100000 daN50000 daN
indication_tableau_dessus
