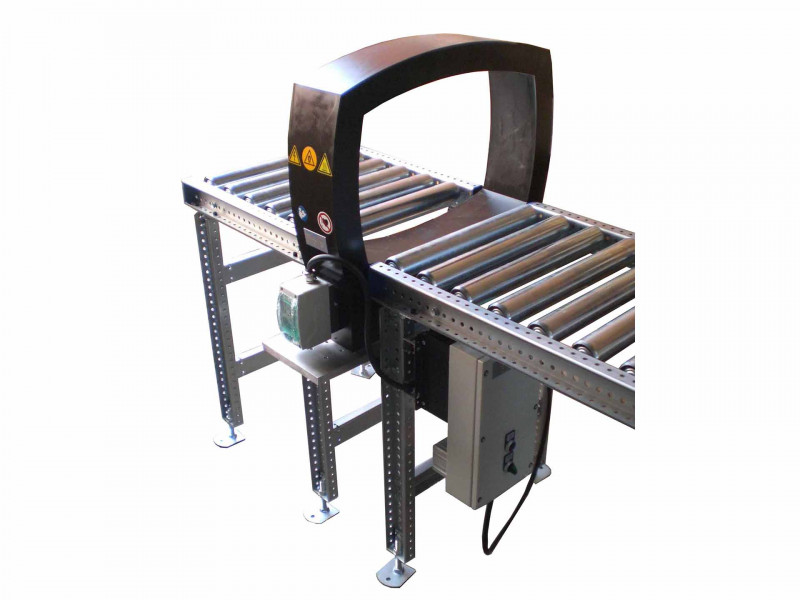

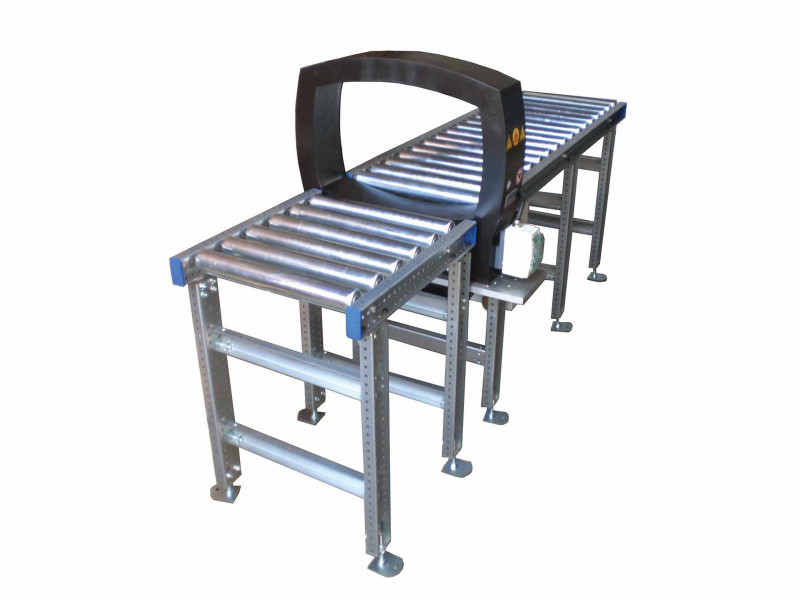

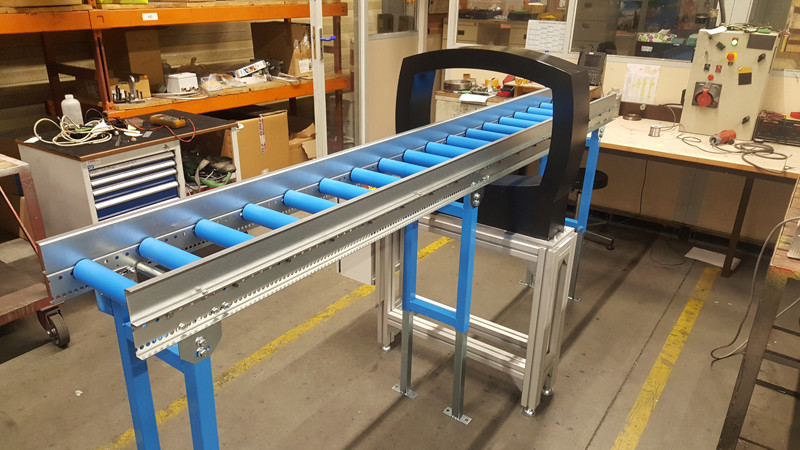

Tunnel demagnetizer with roller conveyor

    • Heavy duty construction
    • Long service life
    • Effective
    • According to VDE,CEE standards

  • High performance resin encapsulated coil (black)
  • Reinforced system
  • Aluminium frame
  • High quality rollers
  • On/off switch with pilot light
  • Thermal circuit breaker
  • .Electrical box
A part to be demagnetised must be exposed to an alternating magnetic field which reduces H. In order to demagnetise these parts, either to comply with a specification (automotive standards, etc.) or to carry out machining (on a wire machine, for example), the part is passed through the tunnel at a slow and constant speed (approximately 0.2 m/sec). It is essential to take the workpiece out of the demagnetiser by 40 to 60 cm before switching it off.
Demagnetisation test possible. Ask your technical advisor.
  • Use :
    • Demagnetization
  • Voltage :
    • 230/400/480 VAC
  • Duty cycle :
    • 25 à 100 %
Options :
  • manual/motorised rollers
  • Specific frame
  • Starting box with workpiece position sensor
  • Automatic machine for multiple demagnetizing passes
  • Frequency down converter for demagnetizing difficult to demagnetize parts
ENTMAGNETISIERTUNNEL MIT ROLLBAND

Qty Product Weight in kg A B C D E F G H I
16.05.R.T2.2000-200065020011609001145250245600
16.05.R.T4.2500-250085017014909001400380430840
16.05.R.T5.2500-250085017014909001345500300840
