REF 40.10.65
  • 40-15-appareil-a-dresser-les-meules-1578
  • 40-15a-1575
  • 40-15b-1576
40-15-appareil-a-dresser-les-meules-157840-15a-157540-15b-1576

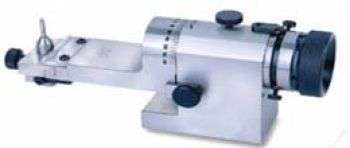

Universal wheel dresser type ADM65

    • Low height
    • Effective

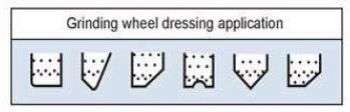

  • Fast and precise production of concave and convex angles and radii
  • Hardened steel tool HRC 60
  • Maximum wheel diameter 205 mm
  • Max. transverse stroke 22,5 mm
  • Convex radii 0.2 to 10 mm
  • Concave radii 0.2 to 25.4 mm
  • Facing angle 95°-0°-95° .
  • Tip height 65 mm
  • Use :
    • Grinding

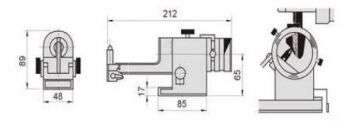

40-15-dimensions-35518

Qty Product Weight in kg A B C D E F
40.10.653,84821265858917
indication_tableau_dessus
To request a quote
  • Enter amounts in the table above
  • Fill in the contact form below
