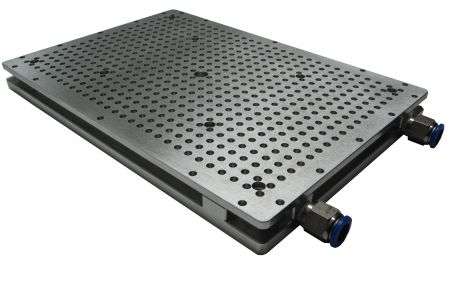

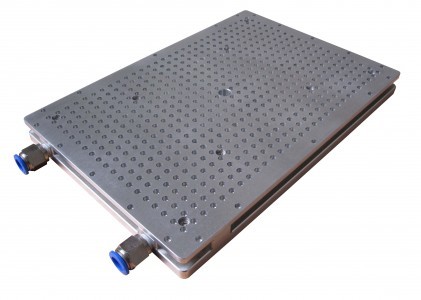

Vacuum Chuck with hole grid type TR

    • Heavy duty construction
    • Effective

. Aluminium vacuum chuck with holes
. Standard height 34 mm
. Distance between the holes 10 x 10 mm
. All holes not covered by the workpiece should also be covered
. The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15
. Corresponding vacuum pump: 30.10 / 30/20
Included with purchase:
- Air hose connector
- End stops
  • Use :
    • Milling
    • Machining
    • Planning
    • Engraving
  • Parallelism :
    • 0,02 mm
  • Flatness :
    • 0,02 mm
Options :
- Another position of air connection
- Multiple independent zones
- Special execution, palletizing
- With steel base plate for use on magnetic chucks

Qty Product Weight in kg A B
30.05.2002004,7200200
30.05.3002006,8300200
30.05.4002008,8400200
30.05.60040017600400
