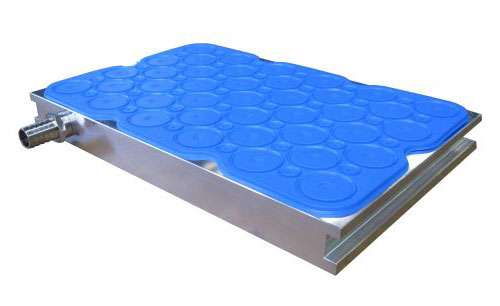

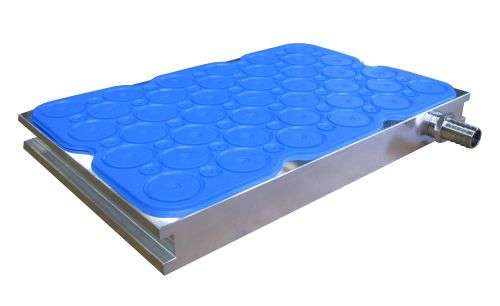

Vacuum Chuck with Rubber Mats type VMT

    • Heavy duty construction
    • Innovative

. Vacuum chuck made of aluminium, with rubber suction mat
. Ideal for cutting out of steel sheet elements
. Rubber mat is a consumption item
. The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15

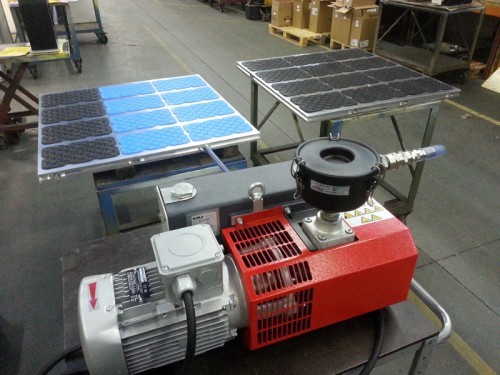

. Corresponding vacuum pump: 30.10 / 30/20
Included with purchase:
- Air hose connector
- End stops

  • Use :
    • Grinding
    • Milling
    • metrology
    • Drilling
    • Contouring
    • Machining
    • Polishing
  • Parallelism :
    • 0.02/100 mm
  • Flatness :
    • 0.02/100 mm
Options :
- Another position of air connection
- Multiple independent zones
- Special execution, palletizing
- With steel base plate for use on magnetic chucks
30-03-361

Qty Product Weight in kg A B C
30.04.99.TAP.B/B0.05300200-
30.04.99.TAP.N/S0,05300200-
30.04.300200730020030
30.04.6003001460030030
30.04.4003001440030030
30.04.6004002860040030
