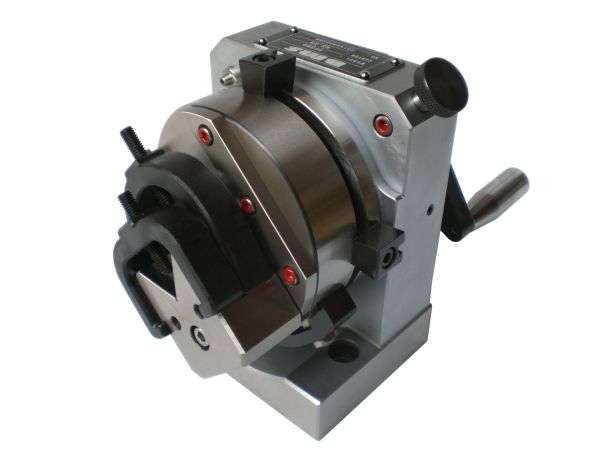

Wheel dresser and punch former type AER/V85,

    • Universal
    • La précision Suisse
    • Heavy duty construction
    • Safe
    • Effective

. Made of hardened tool steel
. Hardenned and precision ground

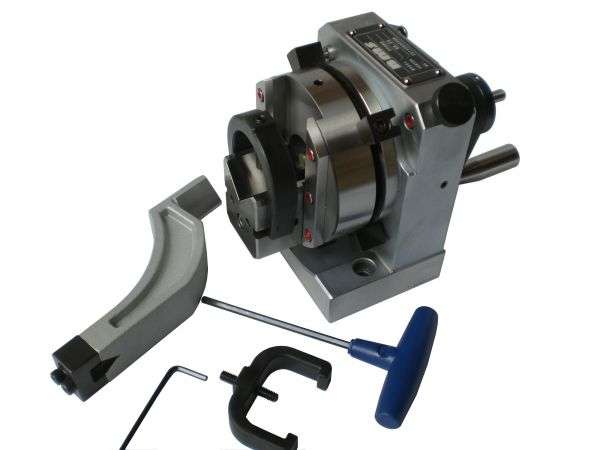

. Deliver with accessorie for wheel dresser
. 24 divisions acuracy ± 5 sec.
. Maximum wheel diameter 200 mm
. Vee vertical travel 25 mm
. Admissible diameter of pieces 4-30 mm
. Center height 80 to 81 mm



  • Use :
    • Grinding
    • For wheel forming
    • Punch former
Options :
Horizontal travel for vee
Complete accessories for wheel dresser
40-11s-36160

Qty Product Weight in kg A B C D E F G H
40.11.Sa9,211314085221,48390,7Ø30
40.11.Sb8,211314085214,78390,7Ø30
